    Hobie 16 Rigging and Wires

    The Hobie 16 has undergone quite a few revisions over the many decades of production. Racers discovered that by raking the mast back, a sailor could get better upwind performance. The factory gradually modified the “standard” cut of sails and rigging length to accommodate this tuning change.

    Original boats had the mast standing up near vertically. In the early 80s a factory change was made to the mast step and shroud lengths to accommodate the increased rake.

    A few more changes occurred over the years with the most recent being the 2004 worlds modification.

    Murrays has adopted a compromised rigging set in the middle of these changes to work on most boats. The specified shroud and forestay lengths will work on the original boats when used with 10-hole shroud adjusters and work with the maximum rake allowed by the sails produced in the 80s. Later in the 90s and post 2004 boats can rake back much further and will require custom lengths. Please ask for current production or “race length” rigging if you have 2004 or newer sails and boat configuration. Forestay, aussie jib halyard, shroud, side stay, bridle, trap wire, main halyard

    48 products
    H-16 ROLLER FURLING RIG KIT: JIB
    Murrays Sports
    $365.00

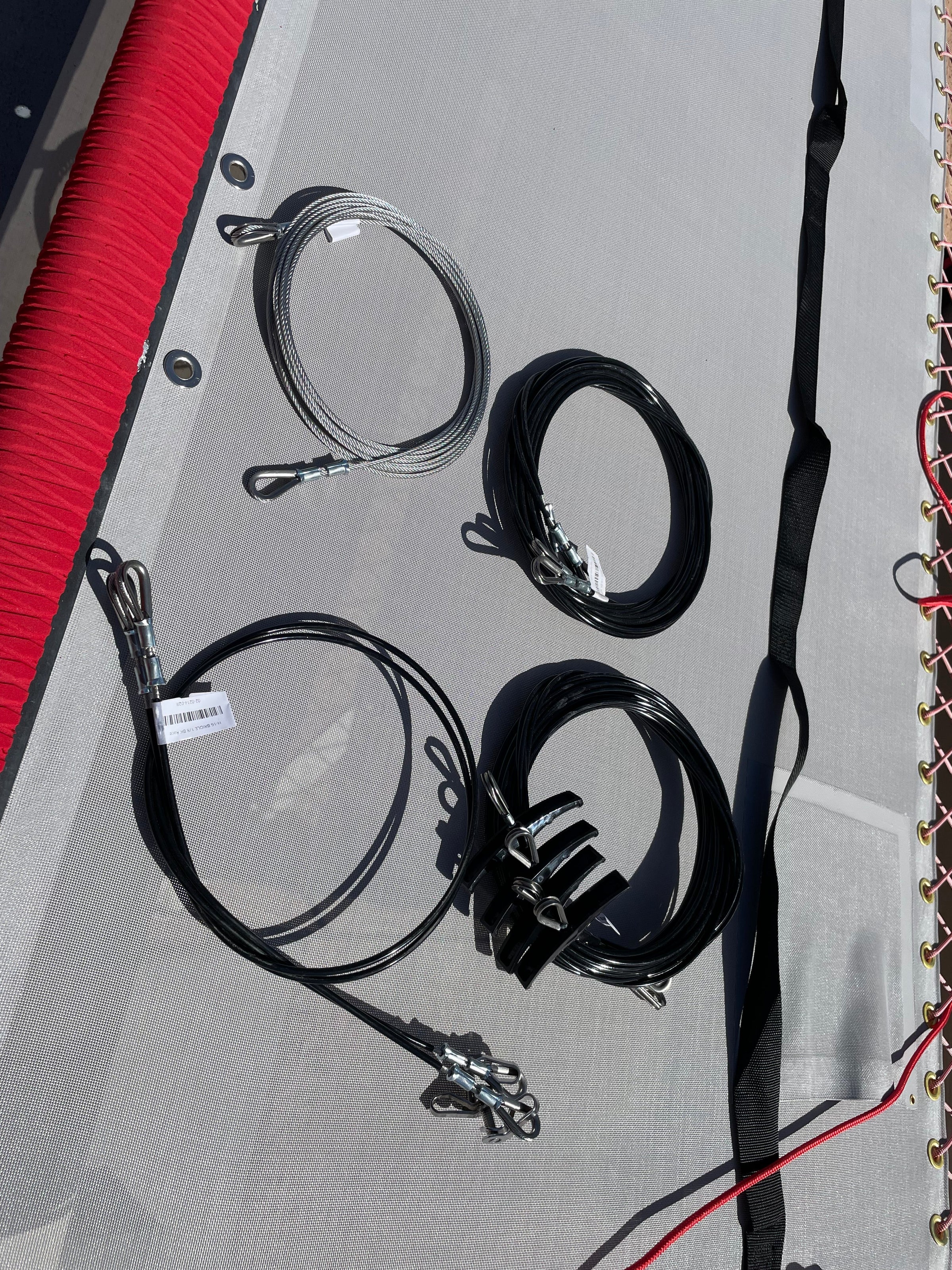

    H16 Rigging Set 2009 Spec


All parts needed for 2021 Race Ready Boat! If you're trying to update your old boat or just need new rigging for your late model Hobie 16, this is the complete package. Whether your racing or just putting around the lake, this kit is accommodates the current rigging standard for factory sails and production boats. All of our rigging is made from 316 stainless steel wire. Thimbles are swaged using our custom hydraulic swaging machine for years of reliable service.
    H-16 RIGGING SET 2009 SPEC
    Murrays Sports
    $365.00
    This Hobie 16 Rigging set is a set of rigging for a Hobie 16 that was standard in 1995. This is a perfect upgrade your 70s, 80s, early 90’s boat to make it more modern.
    H-16 RIGGING KIT: 1995 SPEC BLACK RIGGING
    Murrays Sports
    $350.00
    Out of Stock
    H16 Dyneema Trapeze Lines

Murrays Part# 002-0264

Hobie has approved Dyneema trap lines for class racing as of 2016.
    H-16 DYNEEMA TRAPEZE LINES
    Murrays Sports
    $200.00
    The Hobie 16 Line Package replaces all the lines on a Hobie 16! All lines are pre-cut to the correct length with a hot knife to prevent fraying or unravelling.
    The Hobie 16 Line Package replaces all the lines on a Hobie 16! All lines are pre-cut to the correct length with a hot knife to prevent fraying or unravelling.
    H-16 RECREATIONAL LINE PACKAGE
    Murrays Sports
    from $170.00
    HOBIE 16 AUSSIE JIB HALYARD KIT WITH PIGTAIL
    Murrays Sports
    $149.00
    H-16 AUSSIE JIB HALYARD KIT
    Murrays Sports
    $129.00
    The Murrays Hobie 16 main halyard for is constructed to factory specifications with a long rope section and a shorter wire section with a stopper and halyard shackle. 20617001
    H-16 MAIN HALYARD COMPTIP
    Murrays Sports
    $115.00
    The Murrays Hobie 16 Jib Halyard Tension Kit allows sailors to quickly and easily adjust their jib halyard tension while under way.  This allows sailors to adjust their mask rake and rig tension to suit the conditions.
    H16 JIB HALYARD TENSION KIT
    Murrays Sports
    $105.00
    The Hobie 16 Main sheet Pro is 9mm Ronstan Robline Racing Sheet Pro which lighter and more flexible than the standard main sheet line. It flows thru the blocks quicker and is made with super strong Dyneema fiber for ultimate strength and anti stretch properties with added Taslan for improved grip and cleating. Racing Sheet Pro is soft in the hand and cleats superbly. Amazing in light air as it flows itself thru the blocks with less drag allowing the sails to go out on their own in less wind. Lighter, strong
    Red Black Blue
    H-16 MAIN SHEET PRO
    Robline
    $88.00
    JIB HALYARD BLOCK ASSY HOBIE 16/18
    Hobie
    $84.99
    H-16 TRAPEZE WIRE SET


The Murrays H-16 Trapeze Wire Set is available in 2 colors White and Black PVC Coated 316 stainless steel wire.  Available in 2 Sizes: "Single - 2 handles", which includes one handle per side of the boat and "Double - 4 handles" which includes 2 handles per side of the boat. Each pair is single continuous 3/32″ (1×19) coated wire with two handles for trapezing. A single thimble at the top eliminates clutter.

Murrays Hobie 16 Trap Wires are 16′ 8″ Pull to Pull
    White Black
    H-16 TRAPEZE WIRE SET
    Murrays Sports
    from $84.00
    H16 Jib Halyard with Shackle


Murrays Part# 002-0284-00



Jib halyard with shackle for Hobie 16 is constructed to factory specifications.

This is for use on the classic style H16 jib halyard system with a metal sheave up near the mast tang that was standard in the 70s and 80s.

The rope section of the jib halyard is 20' of 3/16ths line.

Compare to Hobie Part# 20661001
    H-16 JIB HALYARD WITH SHACKLE
    Murrays Sports
    $77.00

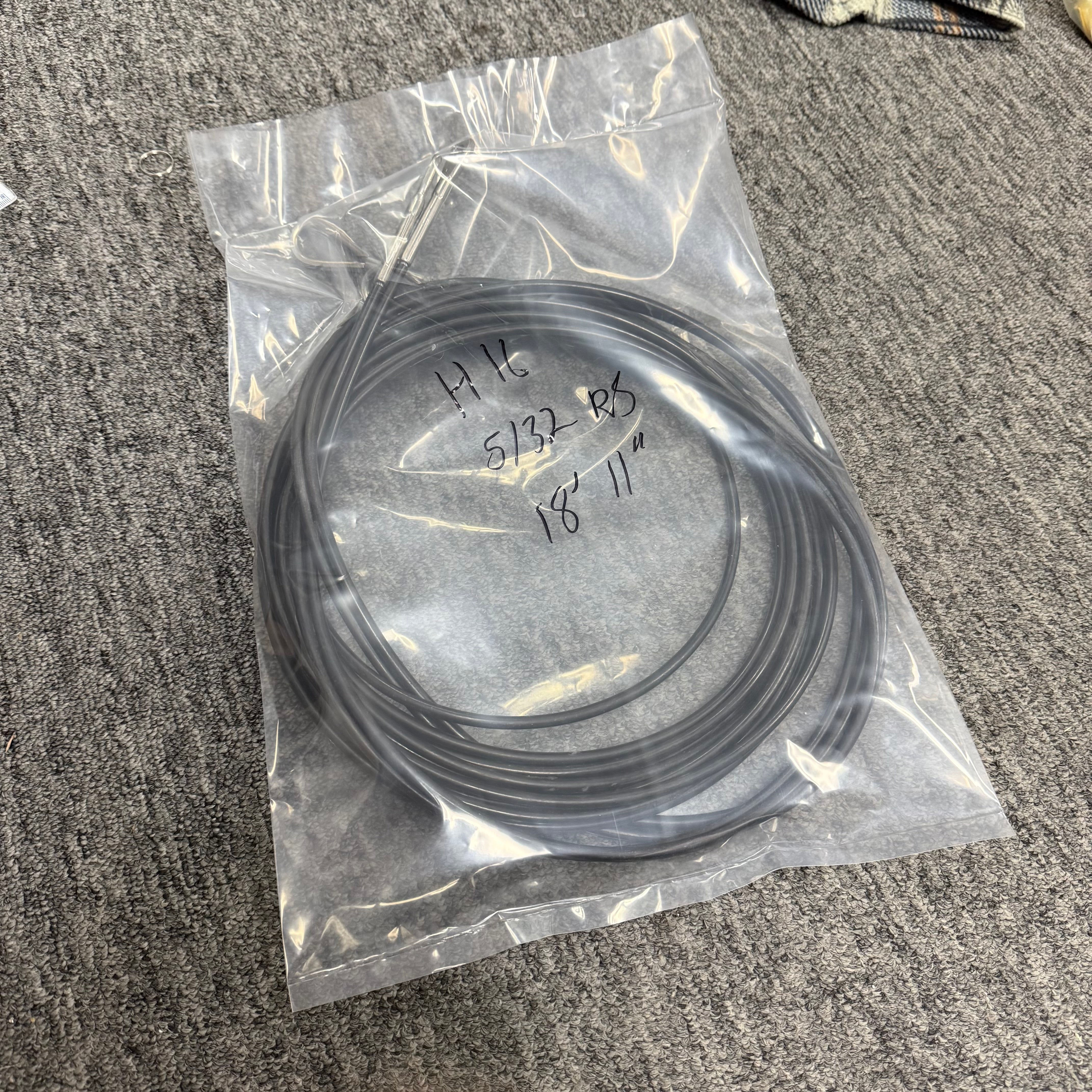

    Hobie 16 Shroud Extra Heavy Duty 5/32"
Murrays Part# 002-0205-12
The Murrays Heavy Duty 5/32" Hobie 16 shroud (sidestay) wire is an extra heavy duty shroud for the Hobie 16.  It is 5/32 wire compared to the standard 1/8" wire and we use a roller swaged marine eye fitting on the lower connection point. Our hydraulic swager exerts a force of over 10,000 pounds to quickly swage without work-hardening the stainless fittings. 20790011
    H-16 SHROUD EXTRA HEAVY DUTY 5/32" WIRE
    Murrays Sports
    $75.00
    Hobie 16 Main Halyard with Shackle is a wire halyard for the all-aluminum mast (no Comp-Tip) Hobie 16 and is used to raise the main sail. Compare to Hobie Cat® #20651011
    H-16 MAIN HALYARD WITH SHACKLE
    Murrays Sports
    $69.95
    The Murrays Hobie 16 Roller Swaged Shroud is an upgrade to the stock shroud or sidestay for the Hobie 16. We use a hydraulic swager exerts a force of over 10,000 pounds to quickly swage without work-hardening the stainless fittings. Hydraulic swaging produces a cleaner, stronger shroud.
    White Black Bare
    H-16 HEAVY DUTY SHROUD 1/8" WIRE
    Murrays Sports
    $64.00
    The Aussie forestay replaced the original upper and lower forestay system in 2009 on the Hobie 16 as the factory standard. It is modeled after what the dominant Aussie racers using on their boats. Aussie forestays are longer than the classic halyard forestays actually have a separate connection cable for the jib halyard. The separate attachment point for the jib halyard provides a back up if either were to fail. If either the forestay or jib halyard were to break, the other will hold the m
    H-16 AUSSIE FORESTAY
    Murrays Sports
    from $49.00
    White Black Blue Red
    HOBIE 16 MAINSHEET SPUN BRAID
    Robline
    from $46.00
    The Murrays Hobie 16 Shroud is a stock  length black coated shroud or sidestay for the Hobie 16. 3 lengths available by boat year, order 2 to get a set. 20792011
    The Murrays Hobie 16 Shroud is a stock  length bare wire shroud or sidestay for the Hobie 16. 3 lengths available by boat year, order 2 shrouds to get a set. 20792011
    White Black Bare
    H-16 SHROUD 1/8" WIRE
    Murrays Sports
    $45.00
    Murrays Can't miss rings, trapeze harness ring, J&H Handles, Hobie part number 2004BLK, dog bone, trap handle
    Murrays Can't miss rings, trapeze harness ring, J&H Handles, Hobie part number 2004BLK, dog bone
    CAN'T MISS RINGS
    Murrays Sports
    $45.00
    Murrays Hobie 16 forestay 1/8" Black
    Murrays Hobie 16 forestay 1/8" Bare
    Bare White Black
    H-16 FORESTAY 1/8" WIRE
    Murrays Sports
    from $40.00
    trapeze adjustment kit - 3102 - Murrays EZ Up Trap Kit
    EZ-UP TRAP KIT: NO-CUT (PR)
    Murrays Sports
    $36.00
    HOBIE JIB HALYARD BLOCK SHEAVE
Murrays PN 50-61260000
Hobie® factory replacement sheave for jib halyard block. Used on Hobie 16s and 18s.
Hobie part number 61260000 and 61260010
    HOBIE JIB HALYARD BLOCK SHEAVE
    Hobie
    $34.99
    Ronstan Series 30 Utility Block, Fiddle

Murrays Part# 21-0186



Use this Ronstan small fiddle block for 4:1 system for boom vangs or righting aids.

This is used for H16 Aussie Halyard Systems too

Fiddle block with tube rivets
    RONSTAN SERIES 30 FIDDLE BLOCK
    Ronstan
    $31.75
    H16 BRIDLE WIRE



The H-16 Bridle Wire is one bridle for Hobie 16 constructed of 316 stainless steel wire to factory specifications. We recommend purchasing two bridles in order to ensure equal length and strength of your bridle wires. Wire lengths changed over the years, please select the appropriate bridle wires for your boat. We recommend Black coated for the longest lifespan.
    black White bare
    H-16 BRIDLE WIRE
    Murrays Sports
    from $30.00
    H16 Aussie Pigtail Assy
Replacement 5/32" pigtail for Aussie jib halyard kit for Hobie® 16 (#01-3302)
    H-16 AUSSIE PIGTAIL ASSY
    Murrays Sports
    $23.00
    Ronstan Figure 8 Trapeze Ring

Murrays Part# 25-3610



Original equipment for Hobie® trapeze systems, the figure 8 ring is 6" long with 1-1/2" rings.
    RONSTAN FIGURE 8 TRAPEZE RING (EACH)
    Ronstan
    $22.00
    Ronstan Single Block, Ferrule

Murrays Part# 21-0469



This is the original clew block on most of the old Hobie cat Sailboats. This will work as a replacement jib clew block for Hobie® 14, 16 and 18 cats. Lightweight stainless block with ferrule has 1-1/8" x 5/8" sheave diameter, Delrin bearing and 1/2" line capacity. SWL: 950 lbs. This is a great option if you're looking to use a larger line diameter on your sheets or want the classic look.
    RONSTAN SINGLE BLOCK, FERRULE
    Ronstan
    $20.00
    Shroud Adjuster Covers 11″ Pair are vinyl covers that protect the crew from metal shroud adjusters and can prevent de-masting by protecting the split rings. Includes two adjuster covers, one for each side of the boat.
    White Black
    SHROUD ADJUSTER COVERS 11"
    Murrays Sports
    from $19.99
    10 Hole Hobie shroud adjuster
    SHROUD STAY ADJUSTER 10-HOLE
    MISC
    $19.99
    RONSTAN SEARIES 30 UTILITY BLOCK, FIDDLE
    Ronstan
    $19.95
    Hobie trapeze shock cord 20730001 and 20730002
    TRAP SHOCK CORD H-14/16
    Murrays Sports
    $18.00
    H-16 UPPER FORESTAY 5/32 BARE

Murrays PN 002-0235-00


Upper forestay for The Hobie® 16 is constructed of 7x19 - 5/32" bare wire to factory specifications. Compare to Hobie Cat® #20810011.

This part is used as part of the classic halyard/ forestay configuration and it holds the stainless pulley that the jib halyard cable attaches to.

This will also work to hold your Aussie halyard block assembly.
    H-16 UPPER FORESTAY 5/32" BARE WIRE
    Murrays Sports
    $17.50
    Ronstan Stainless Steel Bow Shackle, 5/16" Pin, Coined Head with Hole

Murrays Part# 21-0636



The Ronstan 5/16 Bow Shackle has 5/16" diameter pin. Compare to Hobie® #20700001 and SP150081.

Standard all Hobie, Nacra and Prindle catamarans to attach the standing rigging to the mast tang.
    RONSTAN STAINLESS STEEL BOW SHACKLE, 5/16" PIN, COINED HEAD WITH HOLE
    Ronstan
    $16.00
    Harken 22mm Block

Murrays Part# 28-0224

This Harken ball bearing micro single block with stainless side plates is a small block with high load capabilities. It is a premium quality block for your trapeze return system.
    HARKEN 22MM BLOCK
    Harken
    $15.70
    Aussie Jib Halyard Pigtail

Murrays PN 002-0284-00R

Jib halyard pigtail for the Aussie system on a Hobie 16.  Constructed with 1/8" 7x19 bare wire.


Compare to Hobie part number 20810041.

This model is built to the 2009 factory spec.

​Often paired with a 28-0186 Harken Fiddle Block.
    H-16 AUSSIE JIB HALYARD PIGTAIL RACE
    Murrays Sports
    $15.00
    Out of Stock
    Twist Toggle: Hobie/Prindle
Murrays Part# 25-3320
Stainless steel twist toggle is the standard equipment connection between the shroud anchor pin and shroud adjuster on many catamarans. The twist toggle acts as a universal joint to help eliminate binding. Hobie Cat® item #20210000.
    TWIST TOGGLE: HOBIE/PRINDLE
    Hobie
    $14.99
    Sidewinder Becket
Murrays Part# 005-0701
Add on becket for classic Harken Mainsheet systems. The sidewinder becket is for older Harken 2.25" or 3.00" triple blocks. It enables extra purchase ratio without sacrificing low profile block stacking. Some drilling is required for installation.
    SIDEWINDER BECKET
    Murrays Sports
    $12.95
    ELONGATED TRAPEZE RING

Large trapeze ring made of solid 316 stainless steel for strength and longevity.

AKA: dog bone, harness ring, harness loop, trap ring, trapeze ring.

Hobie part number 2002, compare to Hobie part number 2001

Length: 7-1/2"
    ELONGATED TRAPEZE RING
    Murrays Sports
    $12.00
    1/4" Bow Shackle
Ronstan PN RF635
    1/4" BOW SHACKLE
    Ronstan
    $10.75
