Hobie Miracle 20 Rear Crossbar Parts

23 products

    23 products

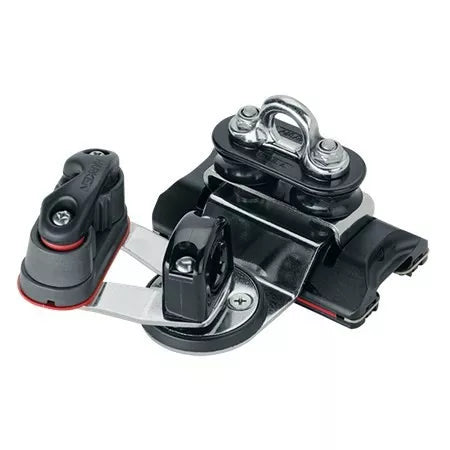

    Harken 22mm High-Load 1250 Car-Pivoting Sheaves, Swivel Cam

Murrays Part# 28-2766

The Harken 1250 High Load Traveler Car With Aluminum Cam is a replacement main traveler car for the Hobie 20 and most Nacra catamarans. It has captive bearings works with the 2003 and newer track and can be adapted to be used on the older non captive ball tracks used prior to 2003.
    HARKEN 22MM HIGH-LOAD 1250 CAR-PIVOTING SHEAVES, SWIVEL CAM
    Harken
    $518.15
    Harken Swivel with Carbo Cam Bullseye

Murrays Part# 25-3010

Swivel cam cleats are ideal for main traveler control and up-release jib cleating systems. Cam cleats and fairleads should be selected on the basis of need. Order plastic base pads and flat head screws separately to mount to your front crossbar.
    HARKEN SWIVEL WITH CARBO CAM & BULLSEYE
    Harken
    $87.99
    Out of Stock
    H20 & Getaway Swivel Travel Cam Plate

Murrays Part# 50-37760041

Hobie® factory replacement swivel cam plate for Getaway. This bent plate is also used on the Hobie® 20 to convert mainsheet traveler control to Hobie® 16/18 style with control cleat (360-degree swivel cam) on main rear beam instead of on mainsheet traveler car. This is your answer to preventing the traveler from coming toward you when you're trying to pull in the mainsheet on your Hobie® 20.
    H-20 & GETAWAY SWIVEL TRAVEL CAM PLATE
    Hobie
    $22.99
    Out of Stock
    H20/21SC Aft Crossbar Support Tube

Murrays Part# 50-41190001

Hobie Part # 41150000
    H-20/21SC AFT CROSSBAR SUPPORT TUBE
    Hobie
    $17.39

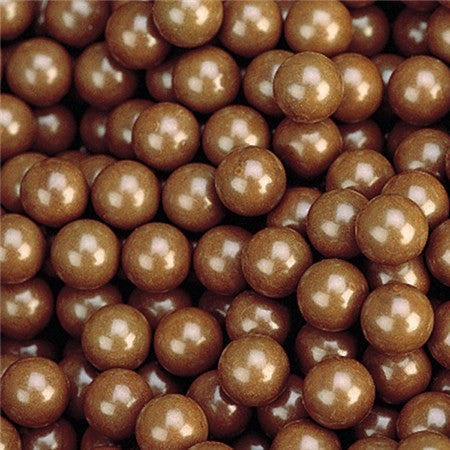

    Harken 1/4" Torlon Ball Bearing-21 Balls

Murrays Part# 28-0177

1/4" Torlon replacement ball bearings fit Harken 158, 159, 172, 210, 212, 214, 215, 249, 440 and 441. A bearing loader, #28-HSB8 (sold separately), is required for installation.

Sold in packages of 21
    HARKEN 1/4" TORLON BALL BEARING (21)
    Harken
    $16.50

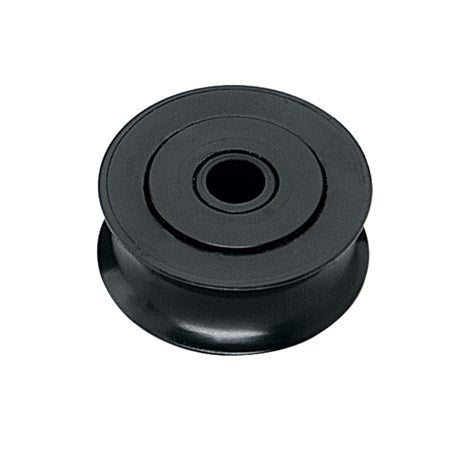

    Harken 29mm Bullet Sheave

Murrays Part# 28-0160



Harken's downhaul/halyard sheave makes raising the sail and/or adjusting the downhaul with Harken ball bearing sheaves much easier. This is a direct replacement for the sheaves that came with early Hobie 17s.
    HARKEN 29MM BULLET SHEAVE
    Harken
    $14.27
    Out of Stock
    Traveler Adjustment Indicator Decal

Murrays Part# 50-40210001



Hobie® factory traveler adjustment indicator decal for Hobie 20.

Hobie Part# 40210001
    Traveler Adjustment Indicator Decal

Murrays Part# 50-40210001



Hobie® factory traveler adjustment indicator decal for Hobie 20.

Hobie Part# 40210001
    TRAVELER ADJUSTMENT INDICATOR DECAL
    Hobie
    $7.39

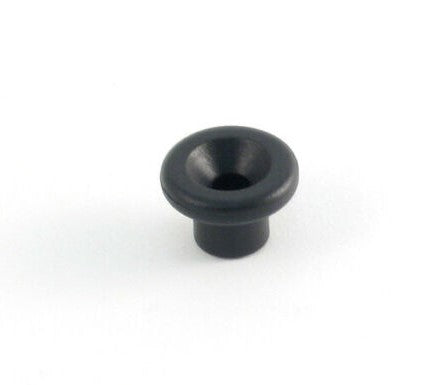

    Eyelet Post H20
Murrays Part# 50-41220001
The Eyelet Post H20 Hobie® factory replacement eyelet post for Hobie® 20 rear crossbar. This item replaces tie button for Inter cats #56-9882.
Fits Hobie Getaway Rear Crossbar
    H-20 EYELET POST
    Hobie
    $5.99

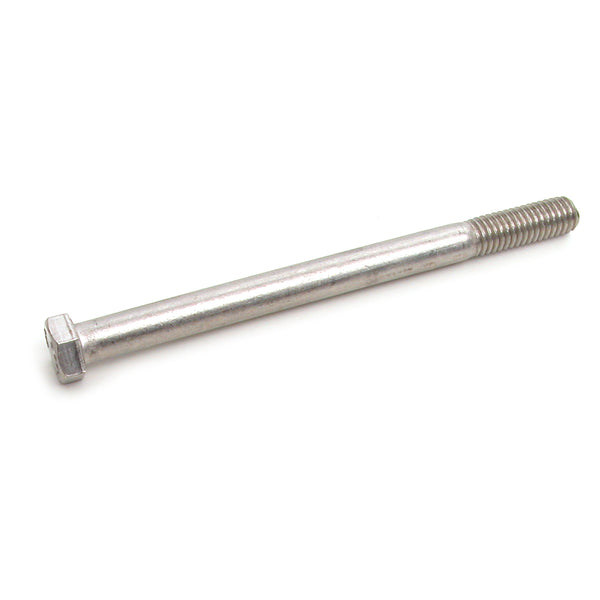

    Bolt 3/8-16 X 5"

50-8040061

Hobie® factory 3/8-16 x 5" bolt is used on Hobie 20 Miracle front crossbar.

Hobie Part# 8040061
    BOLT 3/8-16 X 5"
    Hobie
    $4.99

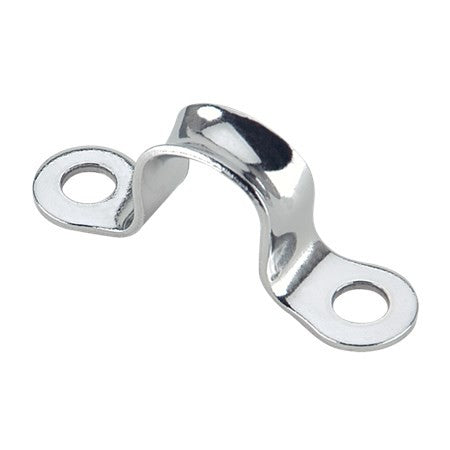

    Harken 38mm Standard Eyestrap

Murrays Part# 28-0137

Eyestrap fits #28-0150 and #28-0365 cams. 3000 lb. breaking strength. Use 1/4" RH fasteners with 1-1/2" spacing.
Eyestraps are useful accessories. They form light-duty mounting bases for blocks, serve as lash-down points, and can be used for fairleads.
    HARKEN 38MM STANDARD EYESTRAP
    Harken
    $3.83
    3/16 X 1/2" Clevis Pin

Murrays Part# 22-9801


Stainless steel clevis pin measures 3/16" diameter x 1/2" grip length (shoulder to the split ring hole).

Prindle / Nacra Part# 9412

Compare to Hobie Cat® Part# 8020041
    3/16 x 1/2" CLEVIS PIN
    Misc
    $2.50

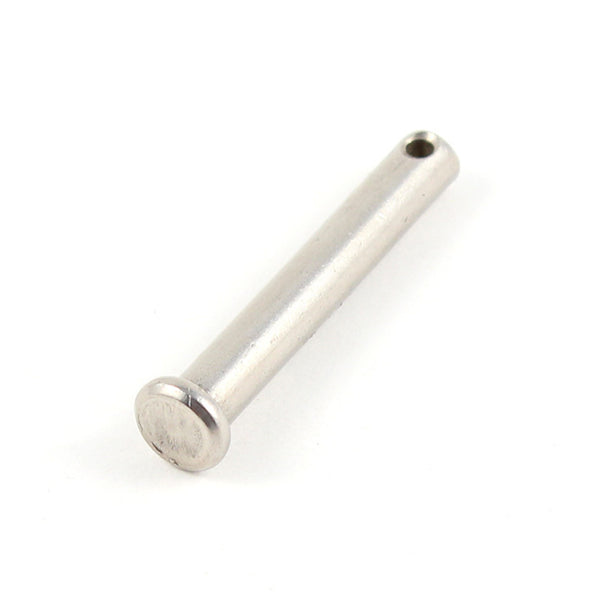

    1/4 X 1-3/8" Clevis Pin

Murrays Part# 22-9804

Stainless steel clevis pin. Measurement is 1/4" diameter x 1-3/4" grip length (shoulder to the split ring hole).

This pin replaces #56-7809, gooseneck clevis pin for Nacra 5.2 and all Prindles.

Prindle Part# 6004

Comparable to Hobie Cat® Part# 8020431
    1/4 X 1-3/8" CLEVIS PIN
    Misc
    $2.50
    Rivet CCC 6-6 (3/16 X 3/8) Countersunk
Murrays Part# 19-5024
Countersunk stainless steel 3/16" x 3/8" rivet for traveler tracks, etc.
Compare to Hobie Part # 8010201.
This rivets is what Hobie recommends for both the main traveler tack and the jib traveler track.
We also recommend using an 1/8" stop sleeve, part number 002-1041, as a spacer to help you apply pressure on the rivet inside the track, as the track is too narrow for most rivet guns to get far enough inside to apply pressure to the rivet.
    RIVET CCC 6-6 CSK
    Misc
    $1.99
    Rivet MSP 6-10 3/16 X 5/8" PH

Murrays Part# 19-5023


Rounded pan head 3/16" x 5/8" Monel rivet.

Compare to Hobie Cat® Part# 8010121
    RIVET MSP 6-10 3/16 X 5/8" PH
    Hobie
    $1.99
    Small Fairlead: 1-1/4 X 1/2
Murrays Part# 23-0921
Stainless steel fairlead measurements:
A = 1-1/4" (31.4mm) between holes center-to-center
B = 1/2" (12.7mm) height
C = 3/16" (5mm) hole diameter
    RONSTAN SMALL FAIRLEAD: 1-1/4 X 1/2
    Ronstan
    $1.90
    Sealed Rivet CCP 6-8 (3/16 X 1/2)
Murrays Part# 19-5033S
Sealed rivets have a sealed end that does not require rivet casings to make them water tight. One and done, no casing needed, just insert and pop as you would a normal rivet, and your hole will be sealed.
Sealed Stainless steel 3/16" x 1/2" rounded pan head rivet. Compare to Hobie Cat® #8011231 Rivet and Hobie Cat® #8011291 rivet casing.
    RIVET CCP SEALED 6-8 (3/16 X 1/2)
    Misc
    $1.40
    RIVET MCP 6-8 3/16x1/2" PH
Murrays Part# 50-8011231
Hobie® factory 6-8 heavy duty rivet requires a rivet tool for installation. 3/16" x 1/2" pan head.
Fits Hobie Getaway Eyelet Post.
Fits Hobie 20 Eyelet Post.
Mounts Wave Mast Step
Hobie part number 8011231
    RIVET MCP 6-8 3/16x1/2" PH
    Hobie
    $0.99
    Rivet CCP 6-8 (3/16 X 1/2)
Murrays Part# 19-5033
Stainless steel 3/16" x 1/2" rounded pan head rivet. Compare to Hobie Cat® #8011231.
    RIVET CCP 6-8 (3/16 X 1/2)
    Misc
    $0.85

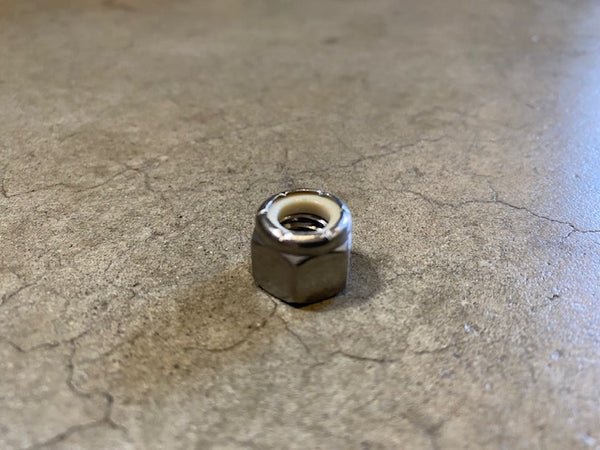

    Nut Nylock 3/8-16" Stainless Steel

Murrays Part# 19-2524

Stainless 3/8-16 hex nut with nylock insert will not rust or work loose if properly installed. Used on newer (1994) Hobie 16 pylon bolt.

Hobie Part# 8050521
    NUT NYLOCK 3/8-16" (SS)
    Misc
    $0.80
    Out of Stock
    Screw 1/4-20 x 1-1/4" PHMS

Murrays Part# 50-8031191



Tiller Extension Hinge Screw
    SCREW 1/4-20 x 1-1/4" PHMS
    Misc
    $0.79
    3/16 - 1/4" Split Ring
Murrays Part# 22-9492
Stainless steel split ring (ring ding) for 3/16″-1/4″ diameter clevis pin. This is the standard size Hobie split ring used all over the boats, most commonly on the shrouds, forestay and roller furler
Medium Split ring
Dimensions: 5/8″ Diameter
Material: 316 Stainless steel.
This is the most common size Split ring on Hobie, Nacra and Prindle Catamarans. 20860000 Medium Clevis Ring.
    3/16-1/4" SPLIT RING
    Misc
    $0.75
    Nut Nylock 5/16-18 Stainless Steel
Murrays Part# 19-2520
5/16-18 nylock nut is used on Hobie® rudders. The stainless steel hex nut with nylock insert will not rust or work loose if properly installed. Compare to Hobie Cat® item #8050311 and 8050321 shroud anchor pin nut
Used with Hobie Getaway Bow Tang Bolt
    NUT NYLOCK 5/16-18 (SS)
    Misc
    $0.75
    Washer 5/16 x 3/4 Flat SS

Murrays Part# 50-8080671

EZ Loc Rudder Assembly Lower Bolt Washer for Hobie Bravo, Getaway and Wave

Hobie Part# 8080671
    WASHER SS 5/16 x 3/4" FLAT
    Hobie
    $0.29
