Hobie Miracle 20 Front Crossbar Parts

21 products

    21 products
    Out of Stock
    HIKING STRAP W/ RIVET PLATES Murray Part# 50-40970001 Hobie® factory hiking strap set for Hobie® 20 includes rivets and plates
    H-20 HIKING STRAPS
    Hobie
    Harken Swivel with Carbo Cam Bullseye Murrays Part# 25-3010 Swivel cam cleats are ideal for main traveler control and up-release jib cleating systems. Cam cleats and fairleads should be selected on the basis of need. Order plastic base pads and flat head screws separately to mount to your front crossbar.
    HARKEN SWIVEL WITH CARBO CAM & BULLSEYE
    Harken
    Mast Ball H20/21/Getaway Murrays Part# 50-30110001 Hobie® factory replacement mast ball for Hobie® 20, 21 and Getaway. Ball measures 1-1/2" diameter with a 5/8"-18 threaded hole.
    H20/21/GETAWAY MAST BALL
    Hobie
    H20 Forward Outboard Sup Tube Murrays Part# 50-41150001
    H-20 FORWARD OUTBOARD SUP TUBE
    Hobie

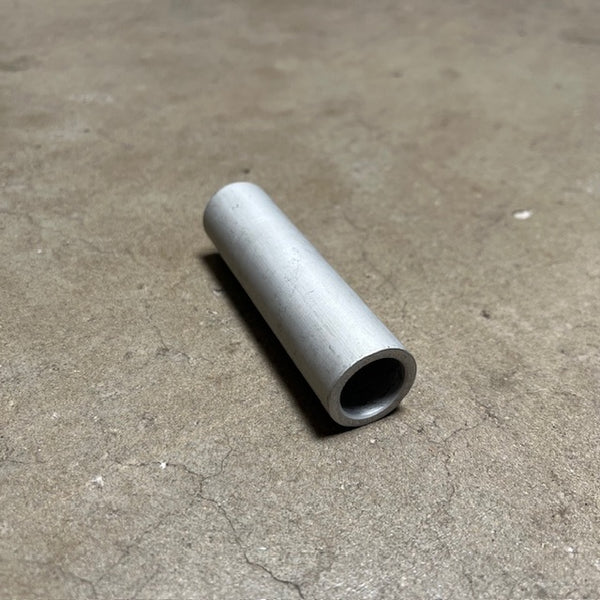

    H20/21 Super Cruiser Compression Sleeve Murays Part# 50-31110001 This is the sleeve that goes over the dolphin striker inside the front crossbar of the H20. Hobie part# 31110001
    H20/21SC COMPRESSION SLEEVE
    Hobie
    Out of Stock
    EXIT GROMMET H20
    Hobie
    Out of Stock
    H20 Jib Hinge Cover Plate Murrays Part# 50-41162001 Hobie® factory replacement hinge cover plate for Hobie 20 jib.
    H-20 JIB HINGE COVER PLATE
    Hobie
    3-Hole Pad Kit Murrays Part# 001-0110 This base kit is for Harken®, Hobie® or Murray 360 cleats without swivel base adapters. Kit includes one 3-hole base, one swivel base adapter (#25-3001), plus three #10 FHSMS (#19-1626). Ronstan swivel 360 cleats include swivel base adapters, so this kit is not necessary. Fits Hobie® or Prindle elliptical crossbar.
    3-HOLE PAD KIT
    Murrays Sports
    H18 Mast Head/Base Sheave Murrays Part# 50-60620000 Factory replacement sheave for Hobie 18 mast head/base and outhaul assembly. Specs: 1" Diameter x 3/8" wide and 1/4" hole. Also used as traveler control line turning sheave on 2005 and newer Hobie 16 sailboats. Applications: Hobie 18 - Mast head halyard sheave ; mast base halyard sheave ; outhaul car sheaves. Hobie 16 - Jib Traveler line sheave. (in the H16 Race Corner Castings) use 50-8011251 Rivet
    H-18 MAST HEAD/BASE SHEAVE
    Hobie
    Bolt 3/8-16 X 5" 50-8040061 Hobie® factory 3/8-16 x 5" bolt is used on Hobie 20 Miracle front crossbar. Hobie Part# 8040061
    BOLT 3/8-16 X 5"
    Hobie
    Bolt Hex Head 1/4-20 X 3.5" Stainless Steel Murrays Part# 19-2224 Stainless steel hex head bolt measures 1/4-20 x 3-1/2" Pylon Bolt for newer H16 Hobie Part# 8040361
    BOLT 1/4-20 X 3.5" (SS)
    Misc
    Rivet CCC 6-6 (3/16 X 3/8) Countersunk Murrays Part# 19-5024 Countersunk stainless steel 3/16" x 3/8" rivet for traveler tracks, etc. Compare to Hobie Part # 8010201. This rivets is what Hobie recommends for both the main traveler tack and the jib traveler track. We also recommend using an 1/8" stop sleeve, part number 002-1041, as a spacer to help you apply pressure on the rivet inside the track, as the track is too narrow for most rivet guns to get far enough inside to apply pressure to the rivet.
    RIVET CCC 6-6 CSK
    Misc
    Small Fairlead: 1-1/4 X 1/2 Murrays Part# 23-0921 Stainless steel fairlead measurements: A = 1-1/4" (31.4mm) between holes center-to-center B = 1/2" (12.7mm) height C = 3/16" (5mm) hole diameter
    RONSTAN SMALL FAIRLEAD: 1-1/4 X 1/2
    Ronstan
    Sealed Rivet CCP 6-8 (3/16 X 1/2) Murrays Part# 19-5033S Sealed rivets have a sealed end that does not require rivet casings to make them water tight. One and done, no casing needed, just insert and pop as you would a normal rivet, and your hole will be sealed. Sealed Stainless steel 3/16" x 1/2" rounded pan head rivet. Compare to Hobie Cat® #8011231 Rivet and Hobie Cat® #8011291 rivet casing.
    RIVET CCP SEALED 6-8 (3/16 X 1/2)
    Misc

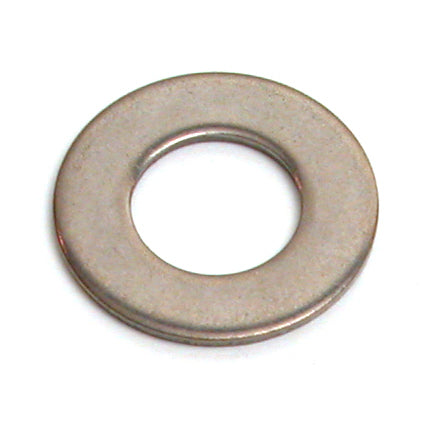

    Washer Stainless Steel 5/8 X 1-5/16" Murrays Part# 50-8080711 Hobie® factory replacement stainless steel 5/8" x 1-5/16" washer. This is the dolphin striker washer on Hobie 20 Miracle and is also used on the Hobie Getaway mast step system. Hobie Part# 8080711
    WASHER SS 5/8 X 1-5/16"
    Hobie
    RIVET MCP 6-8 3/16x1/2" PH Murrays Part# 50-8011231 Hobie® factory 6-8 heavy duty rivet requires a rivet tool for installation. 3/16" x 1/2" pan head. Fits Hobie Getaway Eyelet Post. Fits Hobie 20 Eyelet Post. Mounts Wave Mast Step Hobie part number 8011231
    RIVET MCP 6-8 3/16x1/2" PH
    Hobie
    Rivet CCP 6-8 (3/16 X 1/2) Murrays Part# 19-5033 Stainless steel 3/16" x 1/2" rounded pan head rivet. Compare to Hobie Cat® #8011231.
    RIVET CCP 6-8 (3/16 X 1/2)
    Misc
    Nut Nylock 3/8-16" Stainless Steel Murrays Part# 19-2524 Stainless 3/8-16 hex nut with nylock insert will not rust or work loose if properly installed. Used on newer (1994) Hobie 16 pylon bolt. Hobie Part# 8050521
    NUT NYLOCK 3/8-16" (SS)
    Misc
    Nut Nylock 3/8-24 Murrays Part# 50-8050511 Replacement 3/8-24 nylock nut is used on Hobie® 14, 16 and 18 dolphin striker rods, as well as Hobie® 17 inboard support. Hobie Part# 8050511
    NUT NYLOCK 3/8-24"
    Hobie
    Nut Nylock 5/16-18 Stainless Steel Murrays Part# 19-2520 5/16-18 nylock nut is used on Hobie® rudders. The stainless steel hex nut with nylock insert will not rust or work loose if properly installed. Compare to Hobie Cat® item #8050311 and 8050321 shroud anchor pin nut Used with Hobie Getaway Bow Tang Bolt
    NUT NYLOCK 5/16-18 (SS)
    Misc
    Used for tiller connection on Hobie Cats®. The stainless 1/4-20 stainless steel hex nut with nylock insert will not rust or work loose if properly installed. Equivalent to Hobie #8050111. Also Equivalent to Nacra/Prindle F123 gudgon nut for all Prindle and older Nacras. Applications: Hobie 18 / H18: Bow Tang Nut Qty: 6 Rudder Adjustment: 1 Hobie Getaway: Forestay Yoke Nut
    NYLOCK NUT 1/4-20 SS
    Misc
